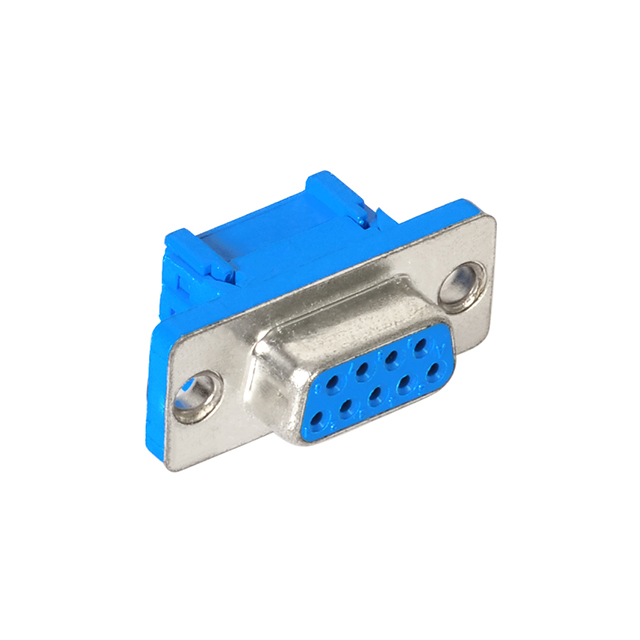

D-sub IDC type W/shell 9-socket
Unit price (USD)
Quantity Price
96+ 0.7051
100+ 0.5876
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Pitch: 2.77mm
·Gender: Female
·No. of contacts: 9
·Current rating: 3A
·Voltage rating: 250VAC/rms 60Hz
·Termination: IDC, ribbon cable
·Contact resistance: 20mΩ Max. at 1A DC
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC RMS 60Hz for 1 minute

Materials

·Insulator: Glass-filled thermoplastic PBT, UL94V-0
·Contact: Brass
·Shell: Steel, 100u" tin over 50u" min copper
·Clinch nut: Brass, nickel plated
·Screwlock: Brass, nickel plated
