Electrical Characteristics

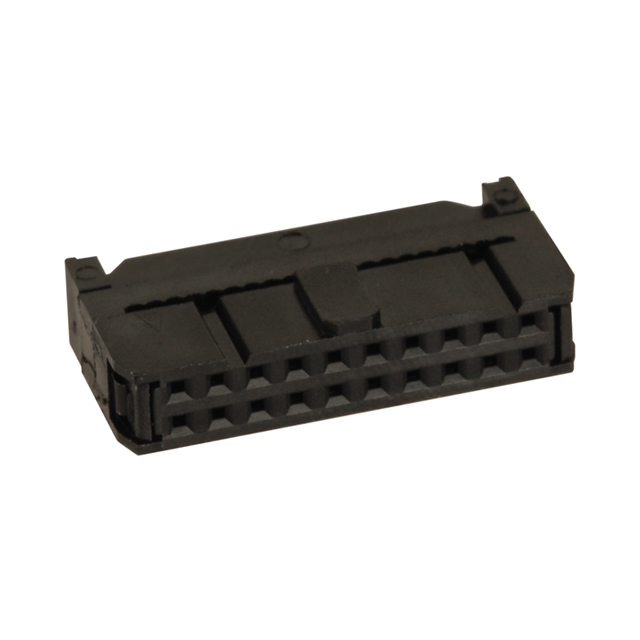

Specifications
·Pitch: 2.54mm
·Gender: Female
·No. of contacts: 20
·No. of rows: 2
·Current rating: 3A
·Voltage rating: 250VAC/rms 60Hz
·Orientation: Right angle
·Termination: IDC
·Contact resistance: 20mΩ Max. at 1A DC
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 500VAC RMS 60Hz for 1 minute
Materials
·Insulator: Glass-filled thermoplastic PBT, UL94V-0
·Contact: Copper alloy
