Electrical Characteristics

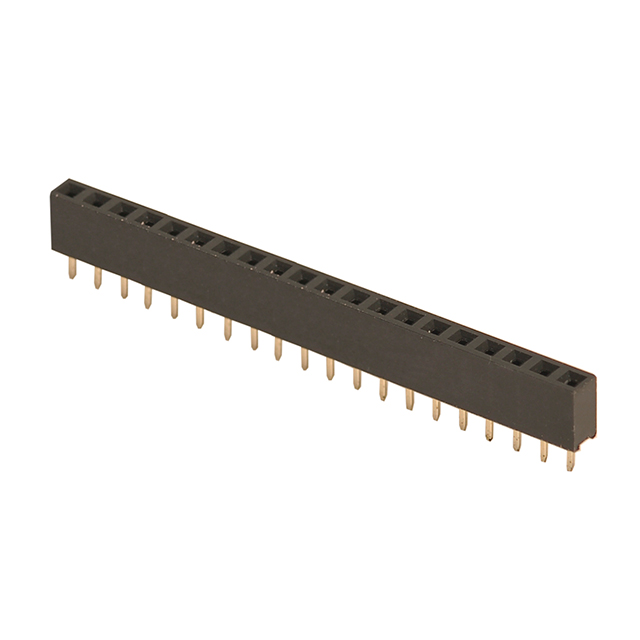

Specifications
·Pitch: 2.0mm
·No. of rows: 1
·No. of contacts: 20
·Current rating: 1A Max.
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Contact resistance: 30mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 800VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C
Materials
·Housing: Nylon 9T (UL94V-0), black
·Terminal: Copper alloy (t=0.2mm), gold plated
