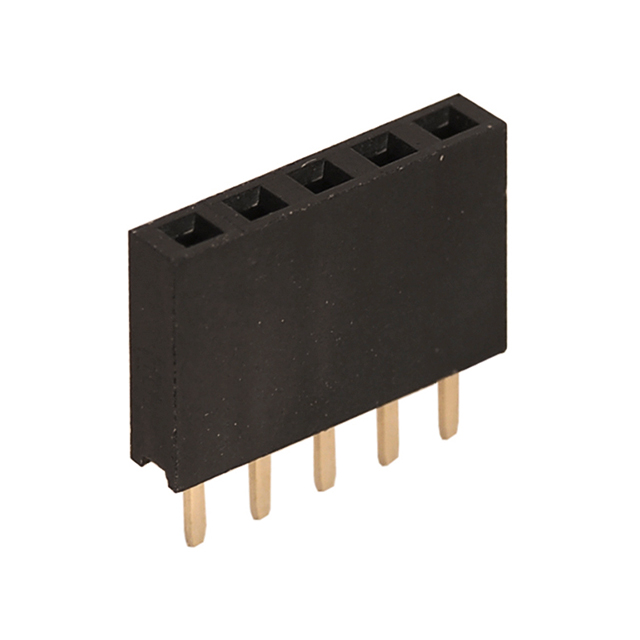

2.54mm Female header single row 5P
Unit price (USD)
Quantity Price
300+ 0.1438
500+ 0.0839
1000+ 0.0699
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Pitch: 2.54mm
·No. of rows: 1
·No. of contacts: 5
·Current rating: 3A Max.
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Contact resistance: 30mΩ Max.
·Insulation resistance: 1000MΩ Min. at 1000VDC
·Withstand voltage: 1000VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C

Materials

·Housing: PBT (UL94V-0), black
·Terminal: Copper alloy (t=0.6mm), gold plated
