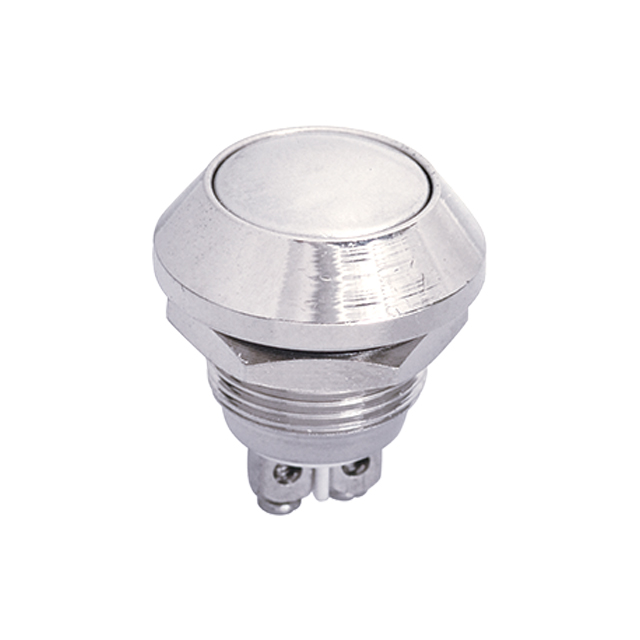

2P metal pushbutton switch
36VDC 2A (SPST) off-(on)
Can reach to IP65
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics


·Circuit: SPST
·Switch function: Momentary / NO / Off-(On)
·Rating: 2A 36VDC
·Thread: M12x0.75
·Contact resistance: 50mΩ Max.
·Insulation resistance: 5OMΩ Min.
·Electrical life: 200,000 make-and-break cycles at full load
·Mechanical life: 1,000,000 cycles
·Operation temperature: -20°C to +55°C
·Travel: About 2.0mm
·Operation pressure: 3N Max.
·Ingress protection: IP65
