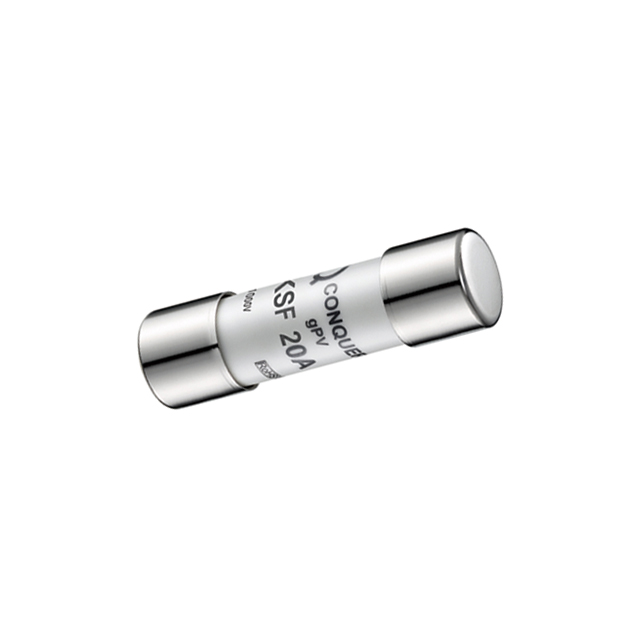

Ceramic power fuse Ø10 x 38mm
1000V 15A~30A
  • Item No.:K239325
  • Product Range : Fuse
  • Approval:
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Overview

Fuse – Circuit Overcurrent Protection
Fuses safeguard circuits from overcurrent damage. Available in glass, ceramic, blade, and SMD types, they are essential in appliances, automotive systems, and industrial equipment for fast, dependable protection.

Features

·2022 Taiwan Excellence Award
·Meets UL 248-19 photovoltaic fuse standard
·High interrupting rating 20kA 1000VDC

Specifications

·Fsue size: Φ10 x 38 mm
·Voltage rating: 1000VDC
·Current rating: 15A ~ 30A available
·Interupting rating: 20kA at 1000VDC
·Operating temerature: -55°C to +125°C
·Soldering iron temperature: 350°C ±5°C
·Heating time: 40 Seconds Max.

Materials

·Body: Ceramic, non-transparent
·Caps: Copper alloy, nickel plated
·Terminal: copper, tin plated

Applications

·Inverters
·Combiner boxes
·Battery charge controllers
