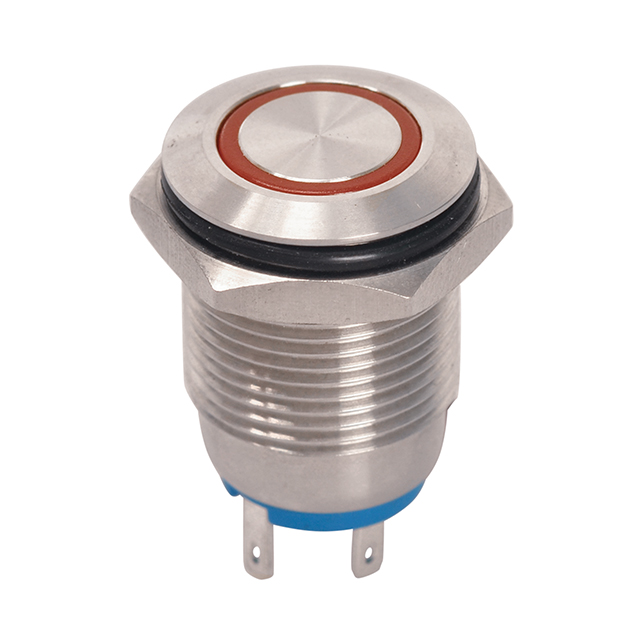

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.

Specifications

·Circuit: SPST
·Switch function: Momentary / NO / Off-(On)
·Rating: 2A 36VDC
·Thread: M16x1.0
·Contact resistance: 50mΩ Max.
·Insulation resistance: 5OMΩ Min.
·Electrical life: 200,000 make-and-break cycles at full load
·Mechanical life: 1,000,000 cycles
·Operation temperature: -20°C to +55°C
·Travel: About 2.0mm
·Operation pressure: 3N Max.
·Ingress protection: IP65
·LED voltage: 6V, 12V, 24V, 220V
·LED color: red, yellow, green, blue, white, orange
