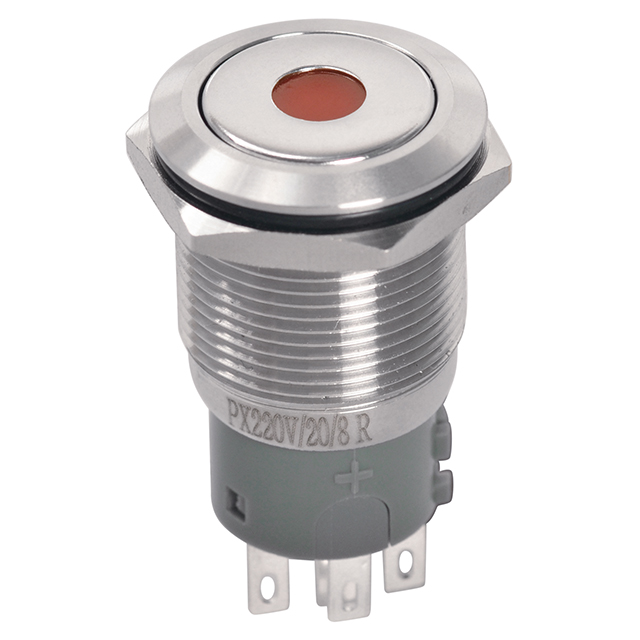

3P illuminated metal pushbutton switch
W/LED (SPDT) on-(on)
250VAC 3A
Can reach to IP65
This item can't be ordered online, please send inquiry!!
Specification :
Voltage
Color
Data Sheet
Electrical Characteristics

Overview

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.

Specifications

·Circuit: SPDT
·Switch function: Momentary / On-(On)
·Rating: 3A 250VAC
·Thread: M19x1.0
·Contact resistance: 50mΩ Max.
·Insulation resistance: 5OMΩ Min.
·Electrical life: 50,000 make-and-break cycles at full load
·Mechanical life: 100,000 cycles
·Operation temperature: -20°C to +55°C
·Travel: About 3.0mm
·Operation pressure: 3.5N Max.
·Ingress protection: IP65
·LED voltage: 6V, 12V, 24V, 220V
·LED color: red, yellow, green, blue, white, orange
