Electrical Characteristics
Overview

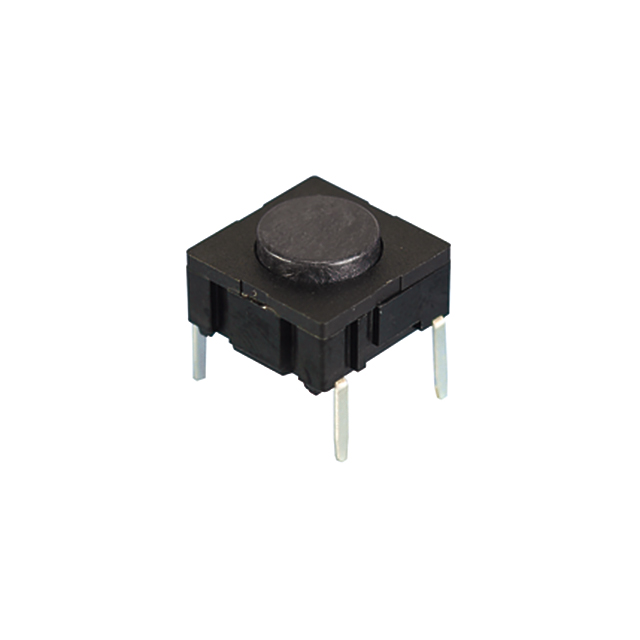

Tact Switch – Momentary Tactile Control
Tact switches provide precise, tactile feedback for momentary control. Used in remote controls, keypads, and medical devices, they feature low-profile designs, varied actuation forces, and through-hole or SMD options.
Features
·Sealed
·Long life
·Variety of actuator lengths
Specifications
·Rating: 50mA 24VDC
·Contact resistance: 30mΩ Max.
·Insulation resistance: 10MΩ Min. at 100VDC
·Dielectric strength: 250VAC for 1 minute
·Operation force: 300±75gf
·Travel: 1mm
·Operation temperature: -40°C to +160°C
·Storage temperature: -40°C to +160°C
·Protective grade: IP67
·Electrical life: 10,000,000 cycles Min.
Applications
·Music instrument
·Intercom system
·Industrial
