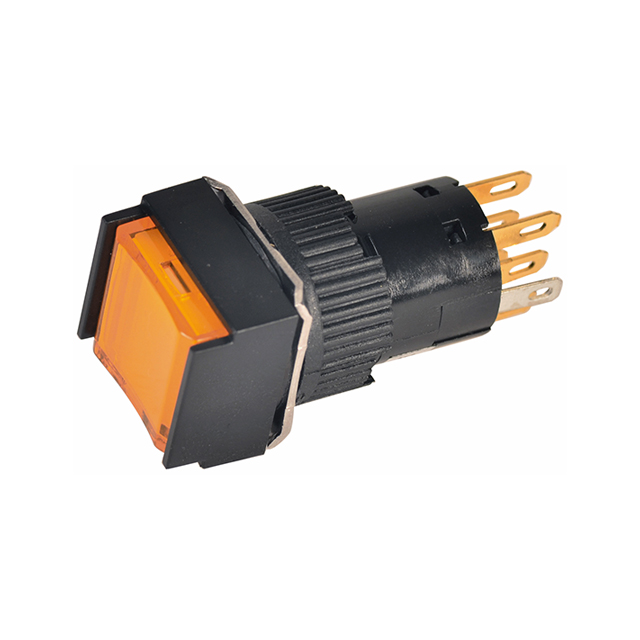

Illuminated pushbutton switch
2NO2NC momentary type
220V 0.5A (LED 220V 2mA)
Mounting hole: 16mm
Can reach to IP40
Unit price (USD)
Quantity Price
10+ 6.1303
Specification :
Color
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Switch function: Off-(On), momentary
·Mounting hole: 16mm
·Contact rating: 0.5A 220V
·LED voltage: 2mA 220V
·Contact block: 2NO2NC
·Contact resistance: 50mΩ Max.(initial)
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC 50/60Hz for 1 minute between non-continumous terminals
2000VAC 50/60Hz for 1 minute between current-carrying part and ground
·Operating temperature: -25°C to 55°C
·Storage temperature : -30°C to 80°C
·Humidity: 45% to 80% RH
·Mechanical cycle: 2,000,000 Min.
·Electrial life: 100,000 Min. (1800 operations/hr)
·Operator protection: IP40
