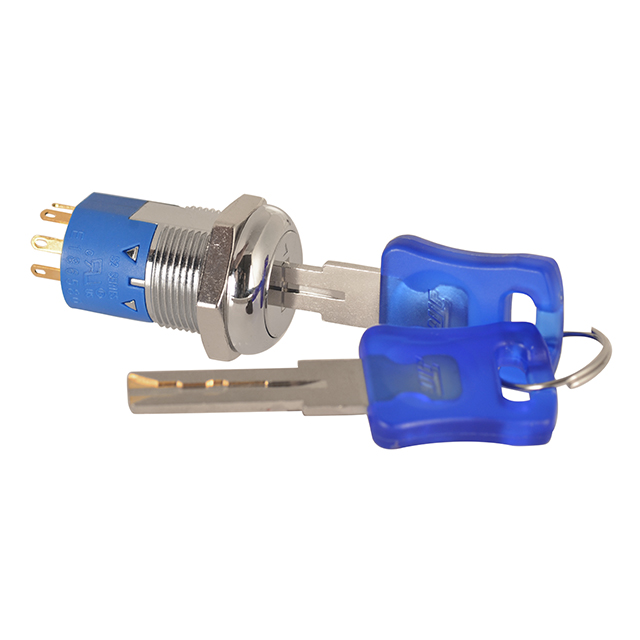

Keylock switch 4P on-on-on
Zinc alloy die cast housing and cylinder
125V 4A (250V 2A) with approval
1 key pull
Unit price (USD)
Quantity Price
500+ 7.5670
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Descriptions

.Zinc alloy die cast housing and cylinder
.Bright nickel plated standard
.8 disc tumbler mechanism
·Brass internal wave keys, nickel plated, with plastic cover
.Golden plated contacts and terminals
.Hex nut or speed clip mounted
·Key withdrawal in one position
.3 position (on-on-on) 4 terminals
.All keyed alike or 20 combinations standard
.5,000 combinations available

Specifications

·Rating: 4A 125VAC / 2A 250VAC / 4A 28VDC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
