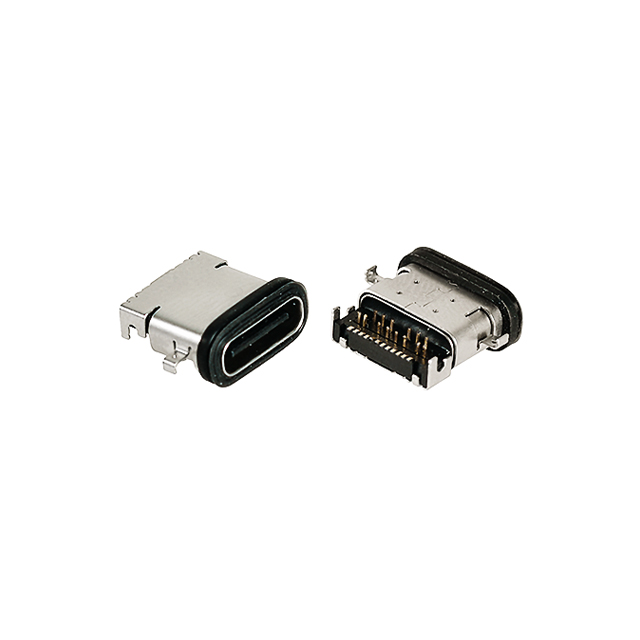

Waterproof right angle USB 3.1 / C type socket 24P DIP+SMD type
Can reach to IP67
Unit price (USD)
Quantity Price
1400+ 1.7720
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics


·Gender: Female
·USB connector type: C
·Current rating: 5A
·Voltage rating: 5V
·No. of positions: 24 Ways
·Mounting type: Through hole + SMD
·Orientation: Right angle
·Termination: Solder
·Insulation resistance: 100MΩ Min. at 100VDC
·Withstand voltage: 100VAC for 1 minute
·Operating temperature: -40°C to +80°C
·Mating force: 0.5~2.0N
·Unmating force: 8~20N (initial), 6~20N (after 10000 cycles)
·Durability: 10000 cycles
·IP rating: IP67


·Housing: PA9T, UL94V-0, black
·Contact: Copper alloy, Au/Ni plated
·MID plate: Stainless steel
·EMI plate: Stainless steel
·Shell: Stainless steel, nickel plated
