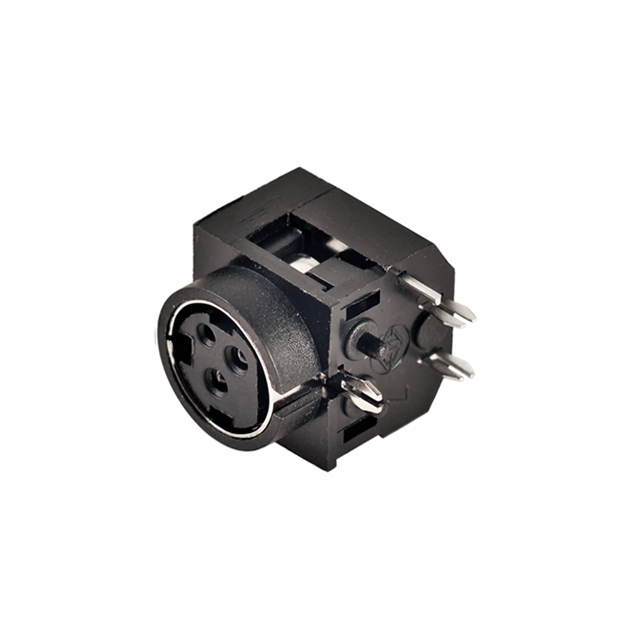

DIN Socket – Female DIN Connector
DIN sockets are female connectors for 3-, 4-, 5-, 6-, 7-, or 8-pin DIN plugs, with keyed orientation for secure mating. Available in panel-mount, cable-mount, and PCB-mount designs, they are used in legacy audio systems, MIDI devices, and test benches for reliable multi-signal connections.
Specifications
·Gender: Female
·No. of contacts: 3
·Current rating: 7.5A
·Voltage rating: 20VDC
·Orientation: Right angle
·Mounting type: Panel mount
·Termination: Solder
·Life cycle: 5000 cycles
Materials
·Contact: Brass, tin plated
·Inner shield: Brass, nickel plated
·Body: PBT, black
·Cover: PBT, black
