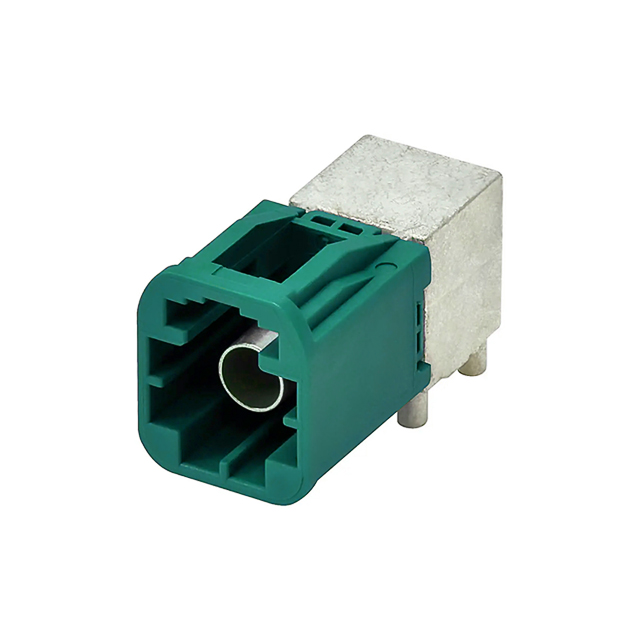

RF automotive right angle mini FAKRA plug type A PCB
60VDC 1A
This item can't be ordered online, please send inquiry!!
Specification :
Color
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·Power current: 1A DC Max.
·Working voltage: 60VDC Max.
·Body orientation: Right angle
·Mouting type: Through hole
·Termination: Solder
·Contact resistance: 5mΩ Max.
·Insulation resistance: 1000MΩ Min.
·Test voltage: 800V rms Max.
·Temperature range: -40°C to +105°C
·Mating cycles: 25 Min.
·Engagememt force: 15N Max.
·Disengagement force: 2N Min.
·Retention force latch: 110N Min.
·Coding efficiency: 150N Min.

Materials

·Insulator: LCP
·Housing: PA
·Center contacts: Brass, 6u" gold plated (contact area), 80u"~160u" tin(matte) plated (solder tails), 80u"~160u" nickel plated (underplate)
·Outer contact (interface) SUS304, 120u"~240u" tin(matte) plated over 40u"~120u" nickel plated
·Shell: Zamak, 120u"~240u" Tin plated over 120u"~200u" nickel plated over 600u"~800u" cu underplated overall
