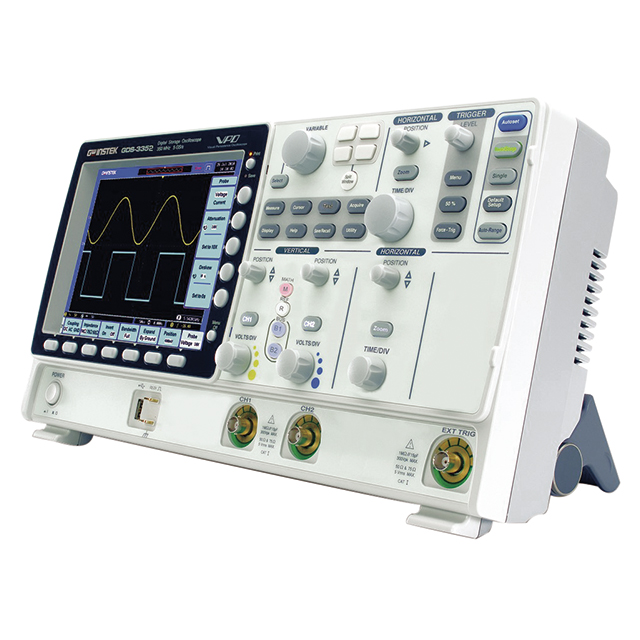

Digital storage oscilloscope 350MHz dual channel 1 Ext trigger with CE approval
This item can't be ordered online, please send inquiry!!
Electrical Characteristics


·Independent memory for each channel
·VPO technology
·Large 8-inch 800x600 display
·Split screen function
·3 Built-in impedances (50Ω/75Ω/1MΩ)
·Power analysis software (Optional)
·Serial bus analysis software for I2C, SPI and UART (Optional)


·Digital/Analogue: Digital
·No. of channels: 2
·Bandwidth: 350MHz
·Oscilloscope form: Digital storage
·Rise time: 1ns
·Sensitivity: 2mV/div ~ 5V/div
·Input coupling: AC, DC & ground
·Input impedance: 1M ± 3%, ~16pF
·Trigger sources: CH1, CH2, line, EXT
·Trigger modes: Auto (support roll mode), normal, single sequence
·Trigger coupling: AC, DC, LF rej., HF rej., Noise rej.
·X-Y mode
X-Axis input: channel 1
Y-Axis input: channel 2
Phase shift : ±3° at 100kHz
·Signal real-time sample rate: 5GSa/s Max.
·Signal equivalent sample rate: 100GSa/s Max.
·Signal record length: 25K points/channel
·TFT LCD type: 8 inch, 600(vertically) x 800 (horizontally) dots (SVGA), 8 x 10 divisions
5V maximum/10mA CMOS open collector output
DB 9-pin male DTE RS-232 interface
USB 2xhost/1xdevice 2.0 high speed supported
·Power source: AC 100V ~ 240V, 48Hz ~ 63Hz, auto selection
·Time clock: Time and date, provide the date/time for saved data
·Dimension (D x W x H): 130 x 40 x 200 mm
·Weight: 4 kgs
