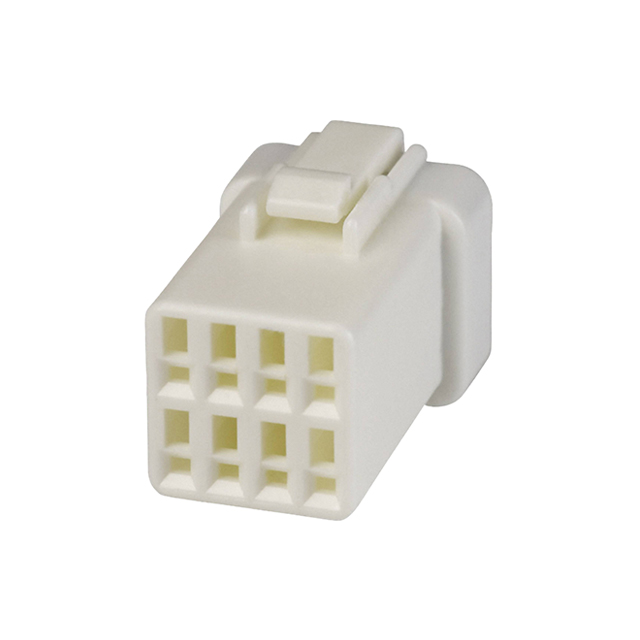

2mm Sealed JWPF series automotive receptacle housing dual row 8 position
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Specifications

·Type: Automotive connector
·Series: JWPF Series Connector
·Gender: Female
·Pitch: 2.0mm
·Number of contacts: 8
·Number of Rows: 2
·Current rating: 3A Max.
·Voltage drop: 5mV/A
·Isolation resistance: 800MΩ
·Dielectric resistance: 1000VAC
·Mounting type: Cable mount
·Termination method: Crimp
·Operating temperature: -40°C to +85°C
·Applicable wire size: 26AWG ~ 22AWG

Materials

·Housing: PBT
·Colour: White
