Overview

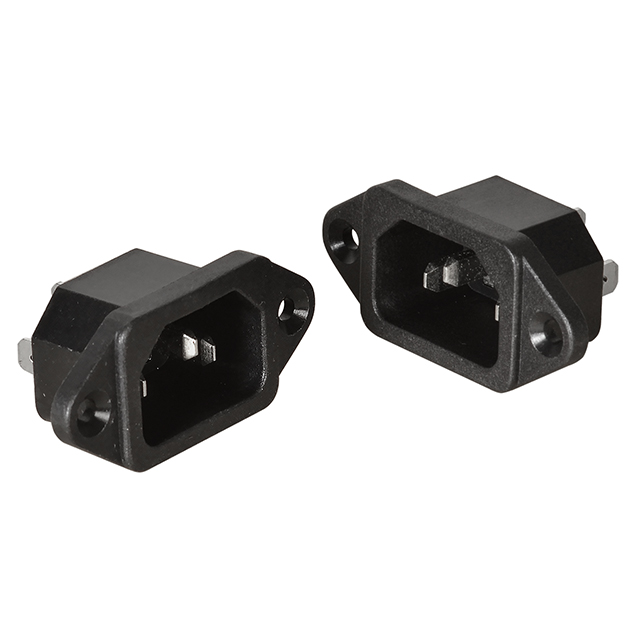

AC Socket – Reliable Power Inlet
AC sockets provide safe, stable power input to devices. Common in computers, appliances, and industrial equipment, they are available in IEC C13, C14, and custom configurations for secure connections.
Specifications
·Gender: Male
·Current rating: 15A / 10A
·Voltage rating: 250VAC
·Connector style: IEC-60320 C14
·Mounting: Panel mount
·Body orientation: Straight
·Termination: Quick connect
·Faston terminals: 4.8 x 0.8mm
·Insulation resistance: 100MΩ at 500VDC
·Dielectric strength: 2000VAC for 1 minute
Materials
·Body: PBT
·Pins: Cu, Sn plated
