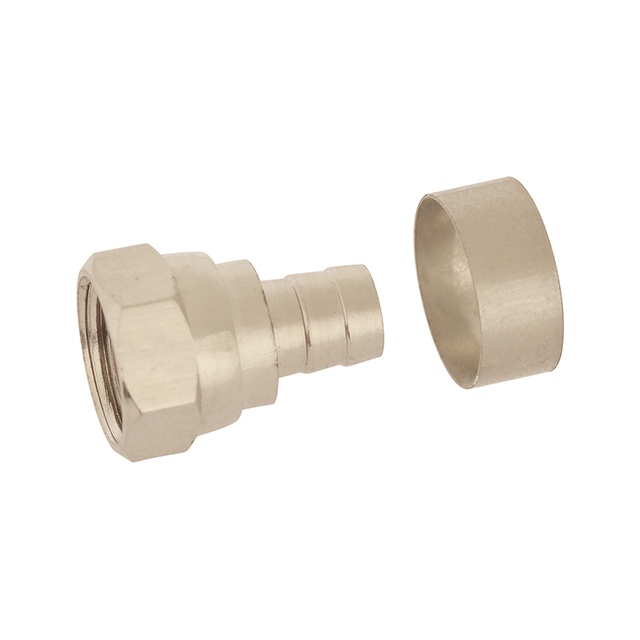

F male crimp type (5C2V)

產品編號：M5603H
產品類別 : F連接器

每一個單價 (USD)

數量	價格
100+	0.2562
200+	0.1494
400+	0.1245

購買

輸入數量查看交期

尺寸圖

電器特性

Specifications

·Gender: Male
·Connector type: F
·Impedance: 75Ω
·Body orientation: Straight
·Mouting type: Cable mount
·Frequency range: 0-2GHz
·Voltage rating: 250VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
