Specifications

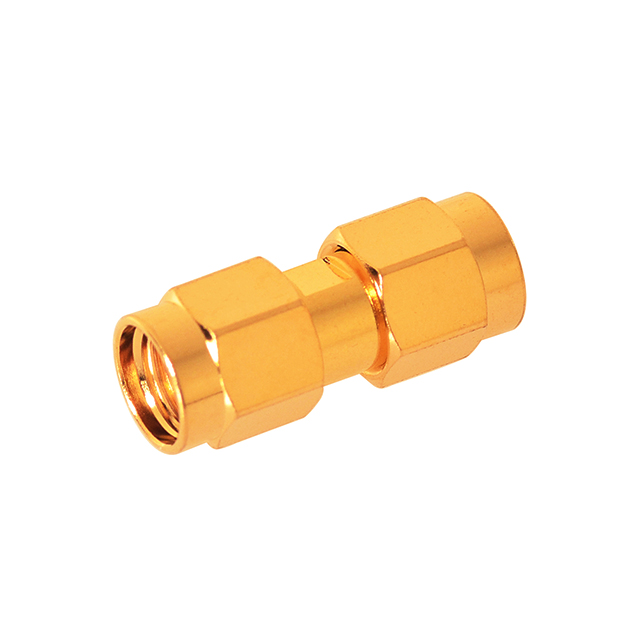

·Gender: Male - male
·Adaper type: SMA
·Adapter type A: SMA
·Adapter type B: Reverse polarity SMA
·Impedance: 50Ω
·Body orientation: Straight
·Frequency range: 0-18GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
Materials
·Shell: Brass, gold lated
·Pin: Brass, gold plated
·Gasket: Silicone, red
·Inner retaining ring: Stainless
·Insulator: Teflon
·Body: Brass, gold plated
