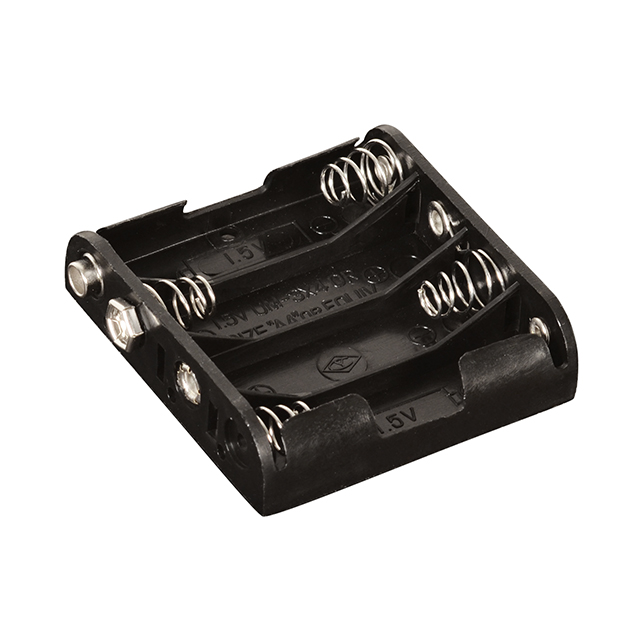

UM 3 x 4 for four AA cell
  • 產品編號:N6341
  • 產品類別 : 電池盒
每一個單價 (USD)
數量 價格
500+ 0.3429
輸入數量查看交期
尺寸圖
電器特性

Specifications

·Battery size: AA
·No. of cells: 4
·Mounting type: Chassis mount
·Termination style: 4 Prong snap terminal
·Dimensions: 61.4 x 57.3 x 15.6 mm

Materials

·Housing: Polypropylene
·Springs: Spring steel, nickel plated
·Rivets: Brass, nickel plated
·9V snaps: Brass, nickel plated
