電器特性

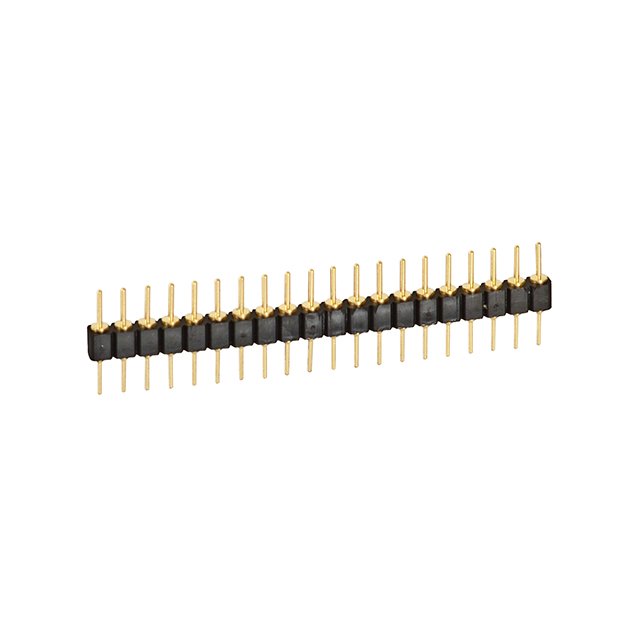

Specifications
·Pitch: 2.54mm
·No. of contacts: 20
·Pin type: Machined
·Current rating: 3A Max.
·Orientation: Straight
·Termination: Solder
·Mounting type: Through hole
·Insulation resistance: 1000MΩ Min. at 100V
·Operating: 60 Veff
·Operating temperature: Gold plated: -55°C to +125°C；Tin plated: -40°C to +105°C
·Soldering temperature: +260°C, 10s Max.
Materials
·Pin: Brass, machined, CuZn38Pb2
·Plating:
Tin plated: 2um/80u" nickel, 5um/200u" tin
Gold plated: 2um/80u" nickel, full gold
·Insulator body (housing): Polyamide (glass filled), UL94V-0
