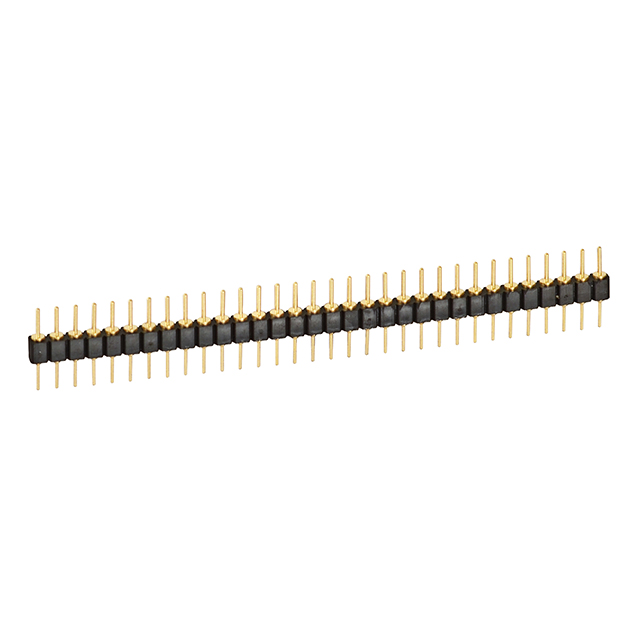

2.54mm Machined pin
DIP straight type 1row 32P
  • 產品編號:YPG1C32
  • 產品類別 : IC腳座
每一個單價 (USD)
數量 價格
1000+ 1.0317
輸入數量查看交期
尺寸圖
電器特性

Specifications

·Pitch: 2.54mm
·No. of contacts: 32
·Pin type: Machined
·Current rating: 3A Max.
·Orientation: Straight
·Termination: Solder
·Mounting type: Through hole
·Insulation resistance: 1000MΩ Min. at 100V
·Operating: 60 Veff
·Operating temperature: Gold plated: -55°C to +125°C;Tin plated: -40°C to +105°C
·Soldering temperature: +260°C, 10s Max.

Materials

·Pin: Brass, machined, CuZn38Pb2
·Plating:
Tin plated: 2um/80u" nickel, 5um/200u" tin
Gold plated: 2um/80u" nickel, full gold
·Insulator body (housing): Polyamide (glass filled), UL94V-0
