Overview

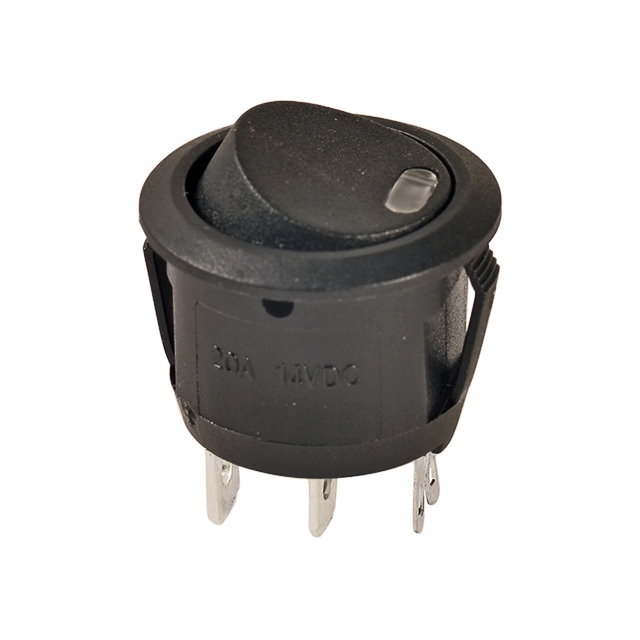

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.

Features

·Illuminated actuators are molded in PC, available with red, amber and green colors.
·Snap-in mounting, easy to install switch into panel.
·Standard dimension of housing height is 14.5mm.
·Waterproof cover is optional.

Specifications

·Circuit: SPST
·Switch function: On-Off
·Rating: 16A 125VAC / 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC 1 minute
·Operation temperature: -20°C to +85°C
