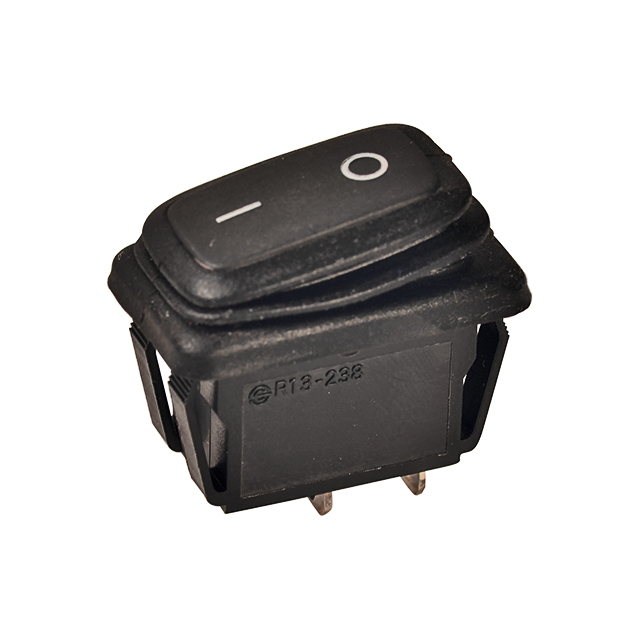

2P waterproof rocker switch (SPST)
on-off 125V 20A (250V 16A)
Can reach to IP65
Printed: I O
這個產品無法線上訂購,請發送詢問!
尺寸圖
電器特性

Specifications

·Circuit: SPST
·Switch function: On-Off
·Rating: 20A 125VAC / 16A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operating temperature: -25°C to +85°C
·Water proof and dust proof to fit IP65

Materials

·Frame: Nylon#66, black
·Actuator: Nylon#66+30%GF, black
·Terminals: Copper alloy, silver plated
·Waterproof rubber: Black, silicone
·Printed: White, hot stamping
