電器特性

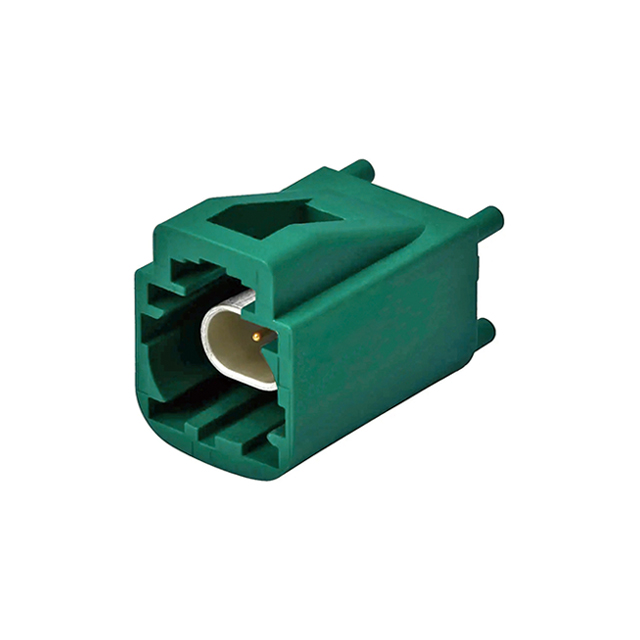

Specifications
·Gender: Male
·Body orientation: Stright
·Current rating: 1.5A Max.
·Voltage rating: 100VAC rms
·Impedance: 100Ω
·Contact resistance: 10mΩ Max. at 20mV Max.
·Insulation resistance: 1000MΩ Min. at 100VDC
·Withstanding voltage: 250VAC rms Min.
·Operation temperature: -40°C to +105°C
·Mating cycles: 25 insertions
·Insulator color: Black, white, blue, bordeaux violet, green, brown, grey, light pink, beige, curry, yellow green, pastel orange, light green, water blue
Materials
·Insulator: PA9T GN2330
·Contacts: Brass C3604, 6u" gold plated
·Shell: Zamak3
