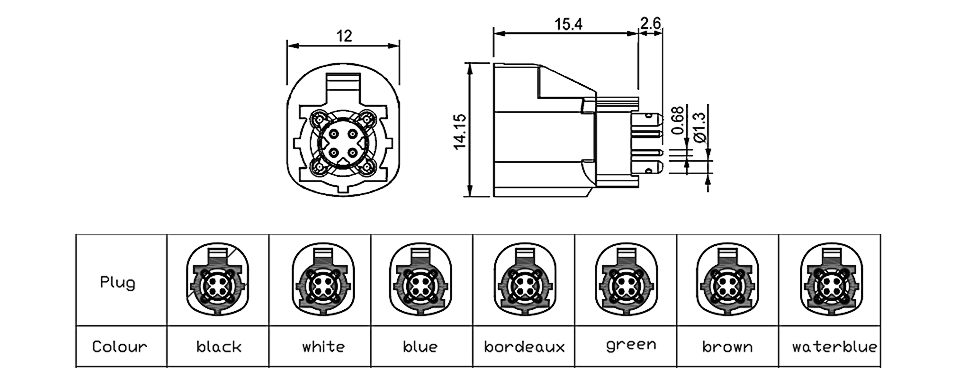

RF automotive connector stright FAKRA HSD plug PCB
  • Item No.：N596006
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Body orientation: Stright
Mouting type: Through hole
Impedance, differential mode: 100Ω
Frequency: DC to 2GHz
Mating cycles: 25 Min.

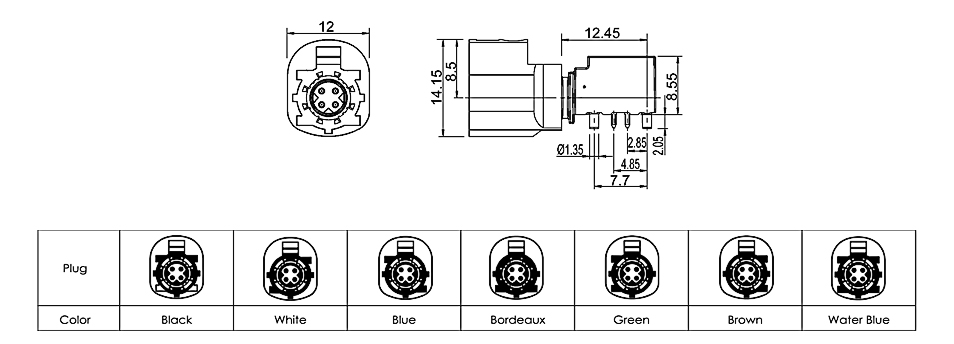

RF automotive connector right angle FAKRA HSD plug PCB
  • Item No.：N596010
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Body orientation: Right angle
Mouting type: Through hole
Impedance, differential mode: 100Ω
Frequency: DC to 2GHz
Mating cycles: 25 Min.

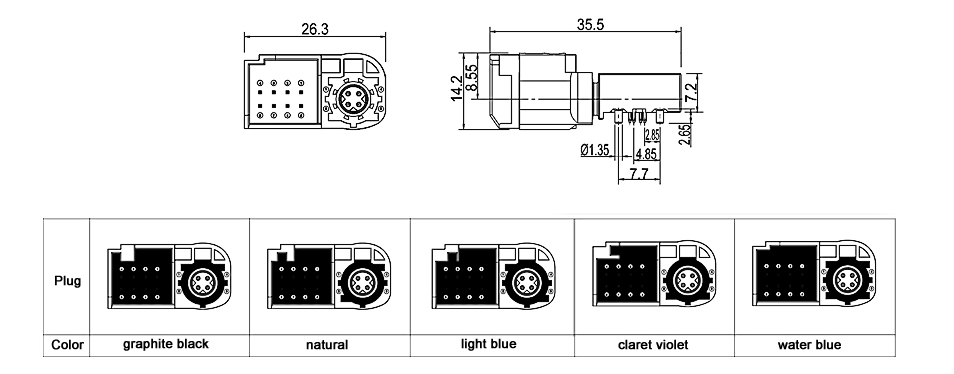

RF automotive connector right angle FAKRA HSD plug PCB with 8 additional power pins MQS housing
  • Item No.：N596012
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Body orientation: Right angle
Mouting type: Panel mount
Impedance, differential mode: 100Ω
Frequency: DC to 2GHz
Mating cycles: 25 Min.
