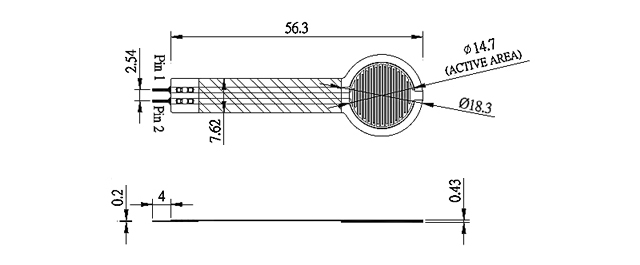

Membrane force sensor 30g~1000g (0.3N~9.8N)
Active area Φ14.7mm

Item No.：P689400

This item can't be ordered online, please send inquiry!!

Send Inquiry

Active area: Φ14.7mm
Response time: <1ms
Force sensitivity range: 30g~1000g (0.3N~9.8N)
Force resolution: Continuous (analog)
Stand-off resistance: >20MΩ (unloaded)
Life cycle (without failure): >10 million

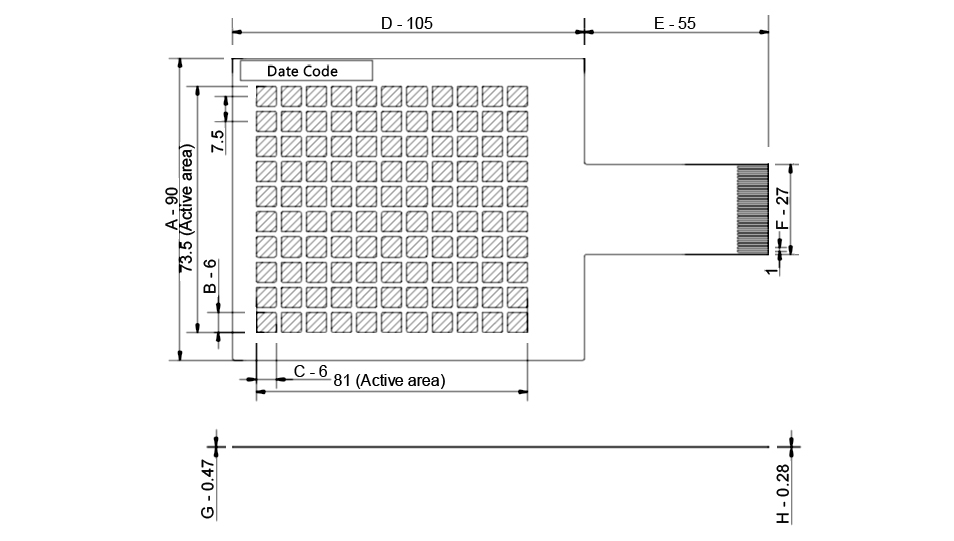

Pressure sensor array 50g~5000g (0.5N~49N)
Active area: 73.5 x 81 mm

Item No.：P689410

This item can't be ordered online, please send inquiry!!

Send Inquiry

Active area: 73.5 x 81 mm
Force sensitivity range: 50g~5000g (0.5N~49N)
Force resolution: Continuous (analog)
Stand-off resistance: >20MΩ (unloaded)
Response time: <1ms
Life cycle (without failure): >1 million

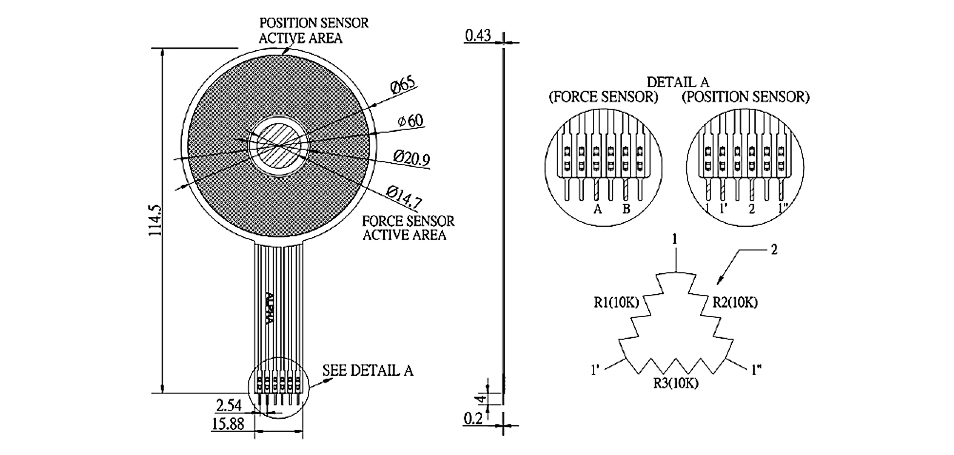

Membrane force & position sensor 30g~1000g (0.3N~9.8N)
Active area Φ14.7mm
