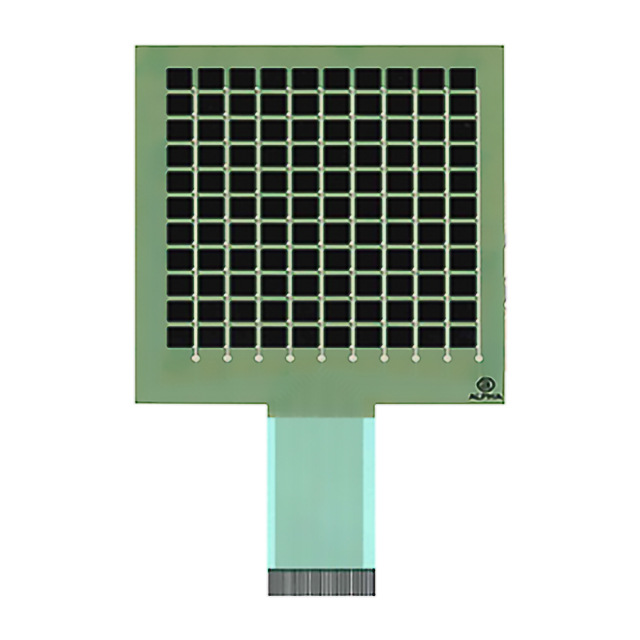

Pressure sensor array 50g~5000g (0.5N~49N)
Active area: 73.5 x 81 mm
Can reach to IP65
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics


·Provides multi-touch function with position (X-Y) and force (Z) detection.


·Active area: 73.5 x 81 mm
·Force sensitivity range: 50g~5000g (0.5N~49N)
·Force resolution: Continuous (analog)
·Stand-off resistance: >20MΩ (unloaded)
·Force repeatability (single part): 2%
·Force repeatability (part to part) : 5%
·Response time: <1ms
·Operating temperature: -30°C to +85°C
·Life cycle (without failure): >1 million
·IP rating: IP65
·Pressure distribution applications such as body and foot pressure mapping system,balance training and rehabilitation, and inventory management.
