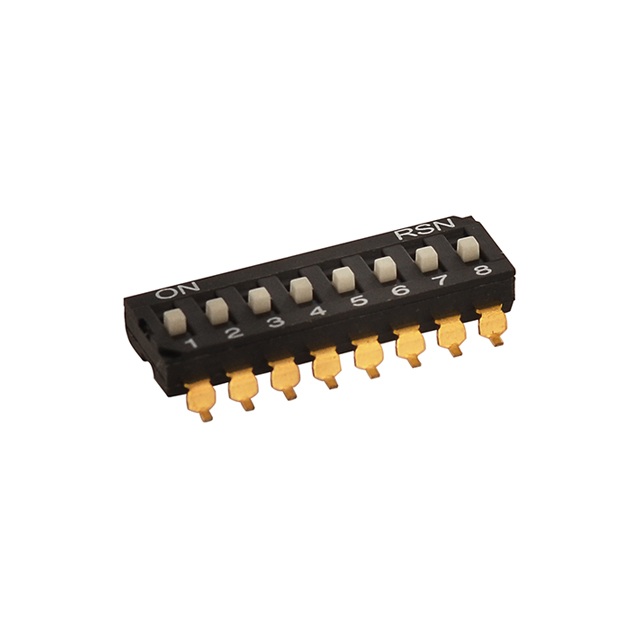

DIP Switch – Configurable PCB-Mounted Switch
DIP switches are PCB-mounted switches for quick hardware configuration without software. Common in control systems, telecom devices, and electronics, they provide multiple positions, long service life, and reliable contact performance.

Specifications

1.Electrical
 ·Contact rating: 25mA 24VDC (switching) ; 100mA 50VDC (non-switching)
 ·Contact resistance: 50mΩ Max.
 ·Insulation resistance: 100MΩ Min. at 500VDC
 ·Dielectric strength: 500VDC Min. for 1 minute
 ·Capacitance between adjacent switches 5pF Max.
2.Mechanical
 ·Operating temperature: -20°C to + 85°C
 ·Storage temperature: -40°C to + 85°C
 ·Operation force: 1000gf Max.
 ·Mechanical life: 2000 operations
 ·Humidity: 95﹪RH, 40°C for 96 Hrs.
 ·Vibration: Per MIL-STD-202F, method 201A
