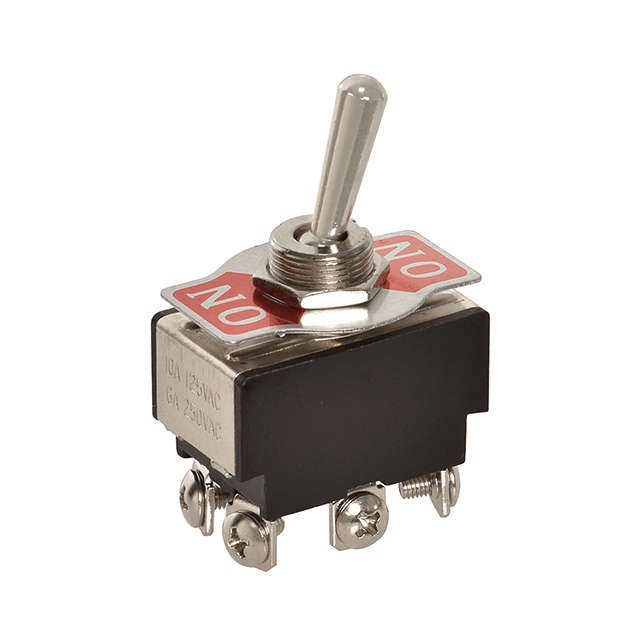

Toggle Switch – Manual Lever Control Switch
Toggle switches are lever-operated switches for dependable on-off or multi-position control. Used in machinery, control panels, marine, and automotive systems, they come in multiple sizes, mounting styles, and voltage ratings.
Specifications
·Rating: 10A 125VAC
·Switch operation: On-on
·Contact configuration: DPDT
·Mounting type: Panel mount
·Terminal type: Screw
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
