Electrical Characteristics

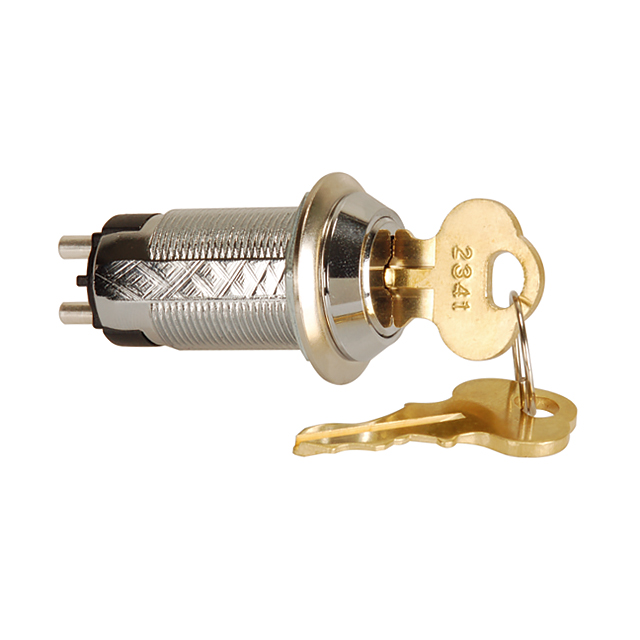

Descriptions
·Zinc alloy die cast housing and cylinder
·Bright chrome plated standard
·11 disc tumbler mechanism
·Reversible double-bitted brass keys
·Key withdrawal in one position
·2 position (off-on) 2 tubular terminals, spring loaded for momentary contact
·Hex nut mounted
·All keyed alike or many combinations available
Specifications
·Rating: 4A 125VAC / 2A 250VAC
·Contact resistance: 10mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 1500 VAC for 1 minute
