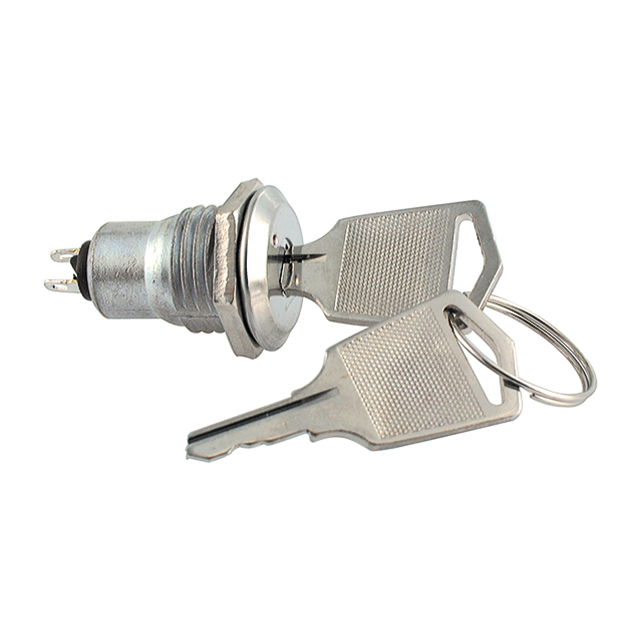

Keylock switch 2P off-on
Zinc alloy die cast housing
125V 1A (250V 0.5A)
Unit price (USD)
Quantity Price
50+ 1.7960
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Descriptions

·No. of positions: 2
·Switch function: off-on
·Current rating: 1A
·Voltage rating: 125VAC
·Angle of throw: 90°
·Key pulls: 1 only
·Actuator type: Flat key
·Mounting type: Panel mount
·Termination: Solder lug
·4 disc tumbler mechanism
·Hex nut or speed clip mounted
·All keyed alike or 20 combinations standard

Materials

·Zinc alloy die cast housing and nylon cylinder
·Stainless steel capped bezel
·Zinc plated standard
·Brass keys, nickel plated
·Silver plated contacts and terminals
