Electrical Characteristics
Specifications
·Power rating: 95W
·Number of ports: 2
·Data rate: 10M/100M/1G/2.5G/5G/10Gbps
·PoE power supply type: End-span + Mid-span
·PoE power output budget: 52V ~ 54V DC / 95W PoE via 4-pair
·PoE power output: 80W Max. for 1M cable, 68W Max. for 100M cable

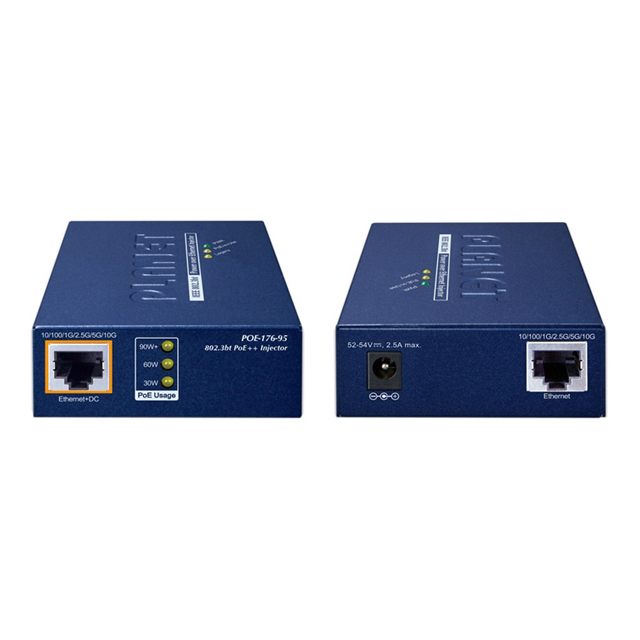

·Interface
Input port: 1 x RJ45 STP data in
Output port: 1 x RJ45 STP PoE(data+power) out
DC socket: 1 x 52V ~ 54V DC input socket, 2.5A Max.
·Network cable:
Twisted-pair cable up to 100 meters (328ft)
10Base-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100Base-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7
5G: 4-pair UTP Cat 6/Cat 6A/Cat 7
10G:4-pair UTP Cat 6A/Cat 7
·LED indicators
System: Power x 1 (green)
PoE port: PoE-in-Use x 1 (amber)
Legacy mode: Legacy x 1 (amber)
PoE usage: PoE usage x 3 (amber)
·Operating temperature: 0°C to +50°C
·Storage temperature: -10°C to +70°C
·Dimension: 94 x 70.3 x 26.2 mm
·Weigth: 195g
