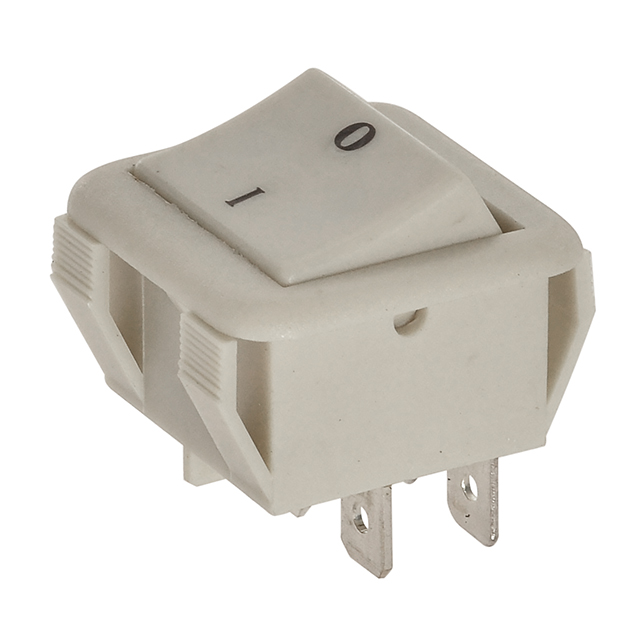

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: DPST
·Switch function: On-Off
·Rating: 10A 125VAC / 10A 250VAC
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
·Operation force: 800±300g
·Operation life: 10,000 cycles at full load
·Operating temperature range: -25°C to +85°C
·Soldering heat temperature: 280°C 3 Sec.
