Electrical Characteristics
Overview

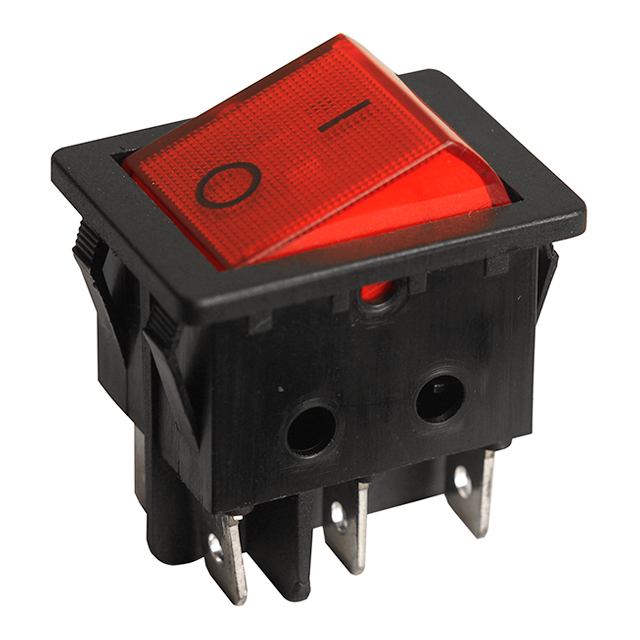

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: DPDT
·Switch function: On-On
·Rating: 16A 125VAC / 10A 250VAC
Materials
·Rocker: PC
·Lamp base: Nylon
·Housing: Nylon #66
·Terminal: Brass
.Contact: Brass
.Spring: 80C steel wire
.Lamp: Neon
