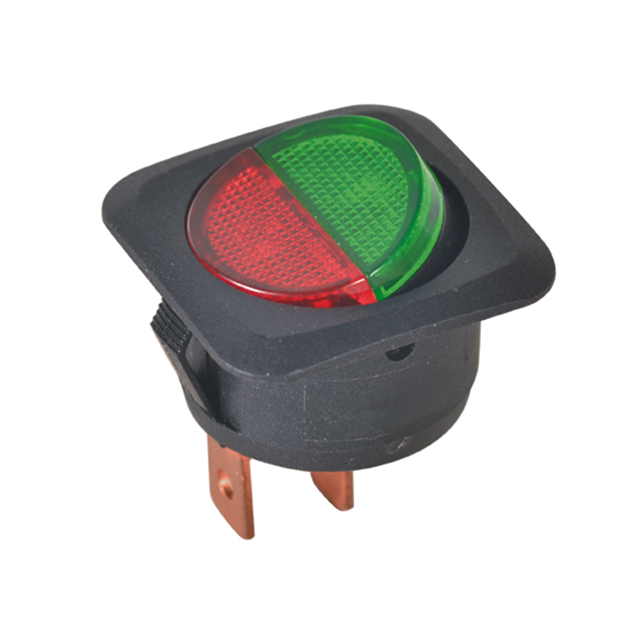

3P illuminated rocker switch (SPST)
on-off with red / green LED
125V 16A (250V 10A) with approval
This item can't be ordered online, please send inquiry!!
Specification :
Data Sheet
Electrical Characteristics


·Illuminated actuators are molded in PC-available with red, amber, blue, green and white colors.
·Snap-in mounting, easy to install switch into panel


·Circuit: SPST
·Switch function: On-Off
·Rating: 16A 125VAC / 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operation temperature: -20°C to +85°C


·Frames: Nylon 66 (UL94V-2), black
·Actuator: PC (UL94V-2), green & red
·Terminals: Copper alloy, silver plated
·LED: Green / red
