Electrical Characteristics
Features
·Snap-in mounting, easy to install switch into panel
·Waterproof cover is optional
·The dimension of frame is 14.5mm
Specifications
·Circuit: SPST
·Switch function: On-Off
·Rating: 16A 125VAC / 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operation temperature: -20°C to +85°C
Materials
·Frames: Nylon (UL flame: 94V-2)
·Terminals: Silver plated brass

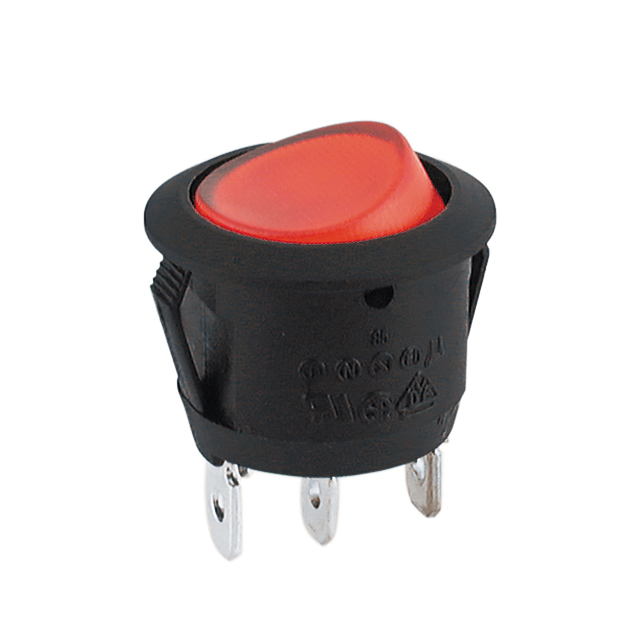

·Illuminated actuators: PC, available with red, amber and green colors
