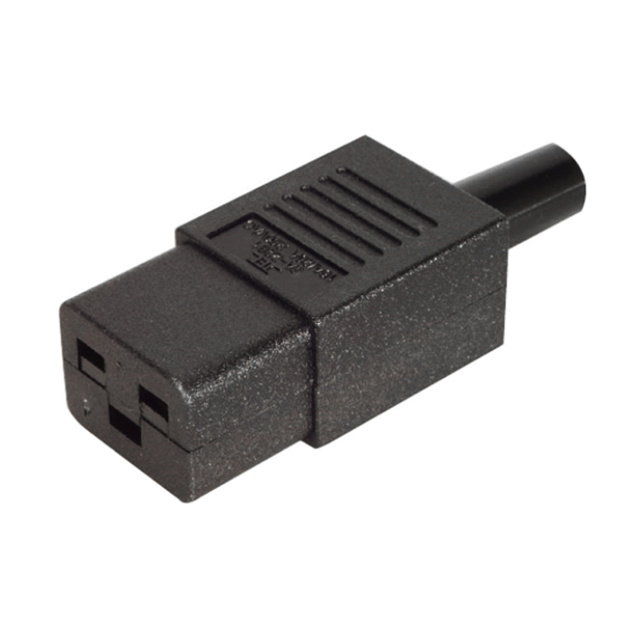

AC connector socket
250V 16A / 20A
With approvals
  • Item No.：K24182
  • Product Range : AC Connector
  • Approval：
Unit price (USD)
Quantity Price
25+ 2.0690
50+ 1.7241
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Female
·Current rating: 16A / 20A
·Voltage rating: 250VAC
·Body orientation: Straight
·Termination: Screw
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 2000VAC for 1 minute

Materials

·Housing: Nylon#66, UL94V-2
·Screw: Iron, nickel
