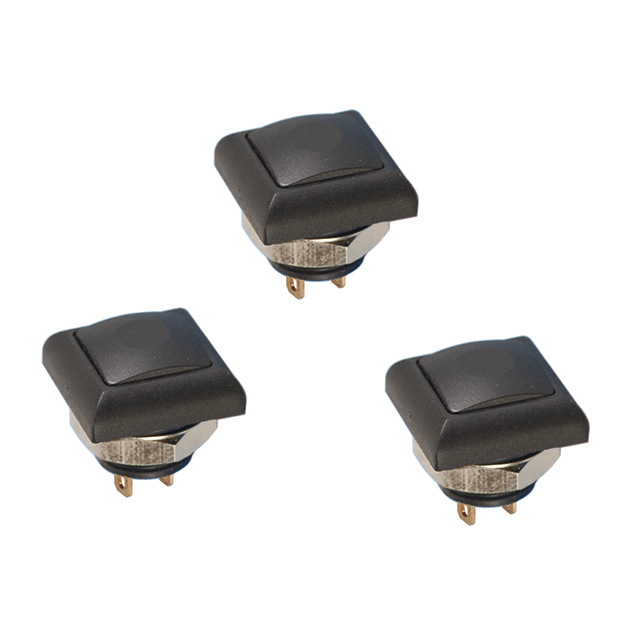

2P square waterproof pushbutton switch
(SPST) open type 125V 125mA
Can reach to IP67
Unit price (USD)
Quantity Price
500+ 1.2340
Specification :
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics


·Circuit: SPST
·Switch function: Off-(On)
·Max. rating with resistive load: 500mA 48VAC / 200mA 50VDC / 200mA 250VAC
·Contact resistance: 50mΩ Max. (initial)
·Insulation resistance: 1GΩO Min. at 500VDC
·Dieletric strength: 1500VAC rms.
·Electrical life at full load: 500,000 cycles
·Panel thickness: 1.5mm(.059) Min.-4mm(.157) Max.
·Total travel: 1.5mm(.059)
·Operating force: 2N-5N
·Contact bounce: 10 ms.
·Mechanical life: 1,000,000 cycles
·Torque: 1.5 Nm Max. applied to nut
·Soldering: 350°C Max. for 5 seconds


·Case: Diallyl phthalate (DAP)(UL94V-0)
·Cap: Polyamide 6/6
·Bushing: Zamak3, chromium plated
·Contacts: Gold over silver plated
