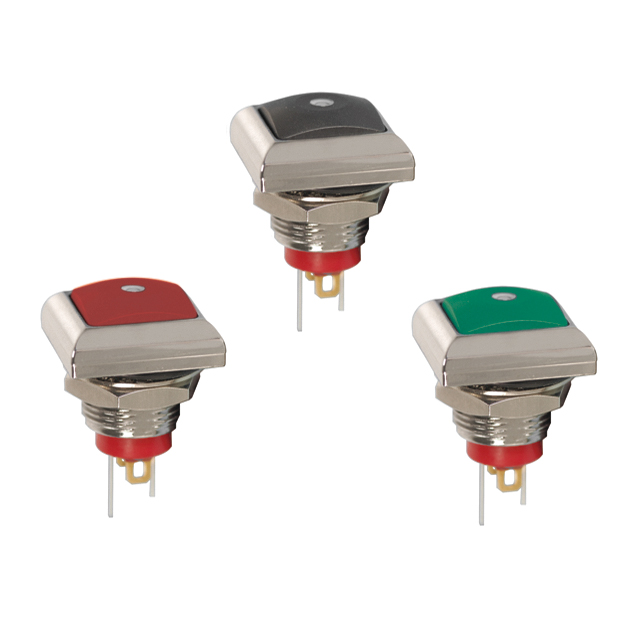

2P square waterproof illuminated pushbutton
switch W/LED (SPST) chromium
Open type 125V 125mA
Can reach to IP67
Price per each (USD)
Quantity Price
500+ 2.2329
Specification :
Color
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: SPST
·Switch function: Off-(On)
·Max. rating with resistive load: 500mA 48VAC / 200mA 50VDC / 200mA 250VAC
·Contact resistance: 50mΩ Max. (initial)
·Insulation resistance: 1GΩ Min. at 500VDC
·Dieletric strength: 1500VAC rms.
·Electrical life at full load: 500,000 cycles
·Panel thickness: 1.5mm(.059) Min.-4mm(.157) Max.
·Total travel: 1.5mm(.059)
·Operating force: 2N-5N
·Contact bounce: 10 ms.
·Mechanical life: 1,000,000 cycles
·Torque: 1.5 Nm Max. applied to nut
·Soldering: 350°C Max. for 5 seconds

Materials

·Case: Diallyl phthalate (DAP)(UL94V-0)
·Cap: Polyamide 6/6
·Bushing: Zamak3, chromium plated
Terminal
·Contacts: Gold over silver plated
