Electrical Characteristics
Overview

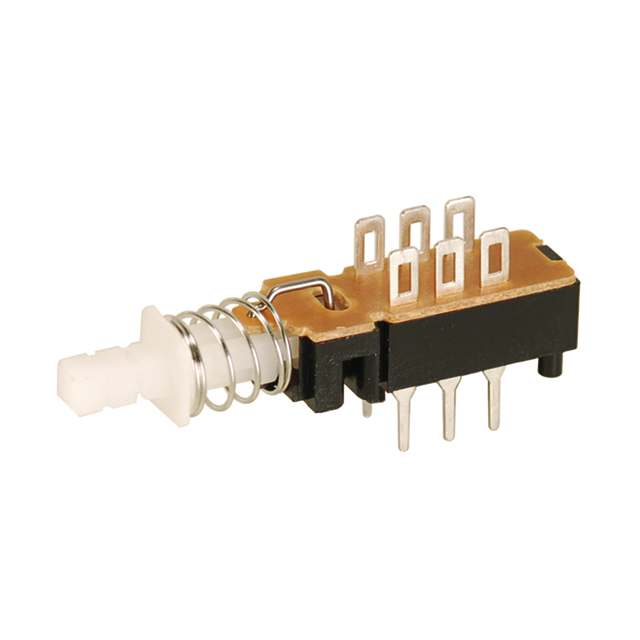

Push Switch
Compact push switches designed for low-voltage, low-current electronic applications. Ideal for consumer electronics, DIY circuits, small devices, and prototyping projects. Provides reliable on/off control with quick tactile feedback for long-lasting performance.
Specifications
·Circuit: 2P2T
.Switch function: On-On
·Rating: 1A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC at 10mA for 5s (terminal-termnal); 3000VAC at 10mA for 5s (terminal-knob)
·Operating force: 4N ~ 5N
