Electrical Characteristics
Overview

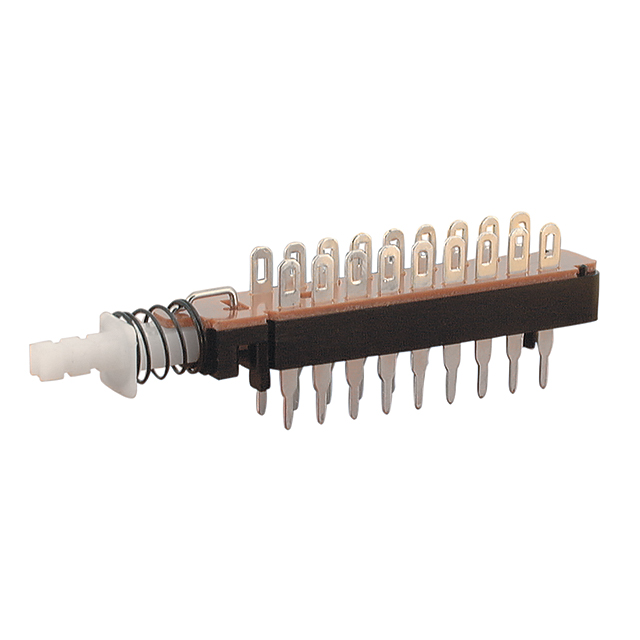

Push Switch
Compact push switches designed for low-voltage, low-current electronic applications. Ideal for consumer electronics, DIY circuits, small devices, and prototyping projects. Provides reliable on/off control with quick tactile feedback for long-lasting performance.
Specifications
·Circuit: 6P2T
.Switch function: On-On
·Rating: 2A 250VAC
·Contact resistance: 20mΩ Max. at 1A 5VDC
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operating force: 300±150gf
