Overview

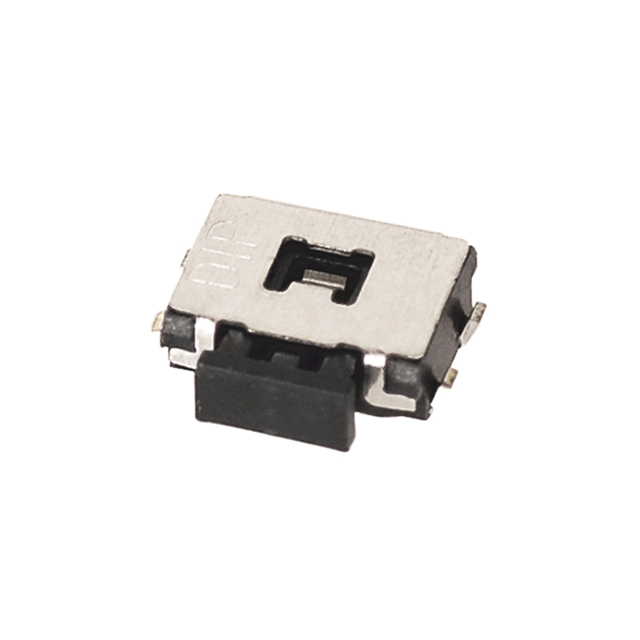

Push Switch
Compact push switches designed for low-voltage, low-current electronic applications. Ideal for consumer electronics, DIY circuits, small devices, and prototyping projects. Provides reliable on/off control with quick tactile feedback for long-lasting performance.

Features

·For high density mounting
·Side actuation
·Reflow solderable

Specifications

·Rating: 50mA 12VDC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 250VAC for 1 minute
·Travel: 0.3mm
·Operation force: 220±70gf
·Operation temperature: -25°C to +70°C
·Storage temperature: -30°C to +80°C
·Electrical life: 100,000 cycles

Applications

·Automotive
·Portable electronic device
·Control panel
