Electrical Characteristics
Overview

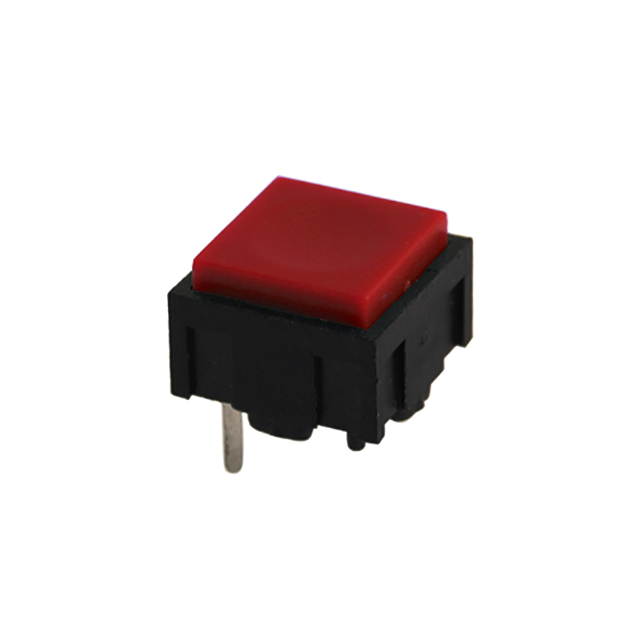

Tact Switch – Momentary Tactile Control
Tact switches provide precise, tactile feedback for momentary control. Used in remote controls, keypads, and medical devices, they feature low-profile designs, varied actuation forces, and through-hole or SMD options.
Specifications
Rating: 0.025A 50VDC
Contact resistance: 30mΩ Max. (initial)
Insulation resistance: 100MΩ Min. at 500VDC (initial)
Dielectric strength: 500VAC for 1 minute (initial)
Operation force: 400±50gf
Electrical life: 40,000 cycles
