Total: 33 Products

Product

Product Details
Price
Data Sheet
Remark
Specification

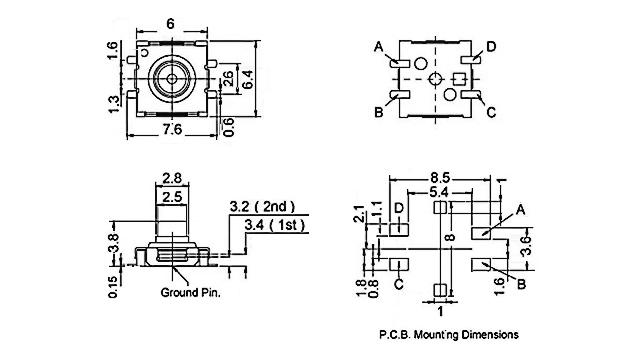

Double action tact switch
12V 0.05A
Unit price (USD)
1100+
0.3161
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Withstanding voltage: 250VAC for 1 minute
Operating force: 1st=100±50gf, 2nd=260±80gf

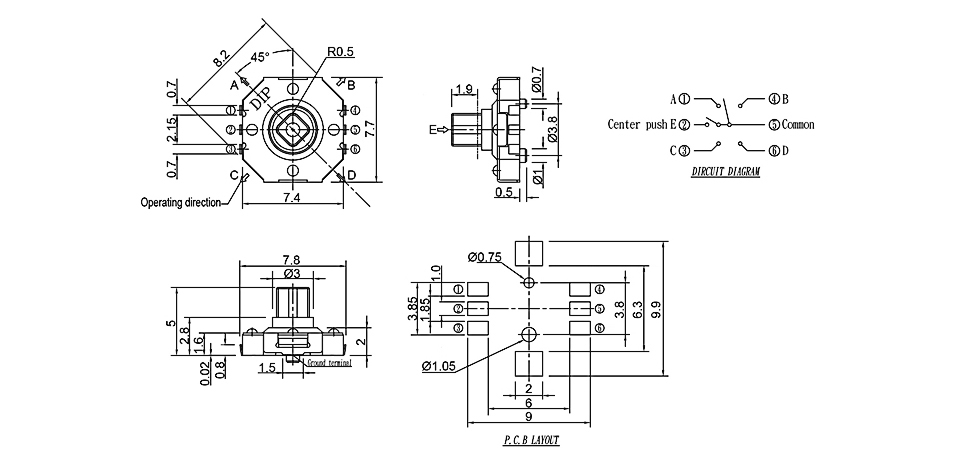

5 Ways tact switch 320gf
12V 0.05A
Unit price (USD)
1700+
0.5651
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Travel: 0.15mm

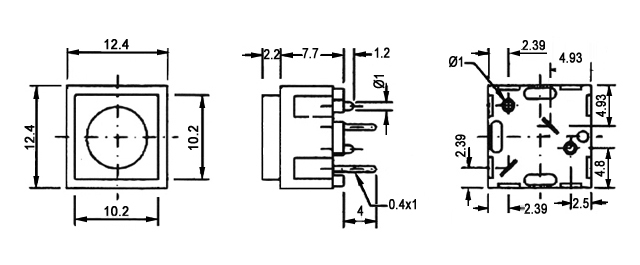

Tact switch
50V 0.025A
  • Item No.：B1715
  • Color
Unit price (USD)
200+
0.2730
Add
Enter Quantity to Check Lead Time
Rating: 0.025A 50VDC
Contact resistance: 30mΩ Max.
Insulation resistance: 100MΩ Min. at 500VDC
Dielectric strength: 500VAC for 1 minute
Operation force: 400±50gf
Square cover for B1729 & B17295
  • Item No.：B17171
  • Color
Unit price (USD)
50+ 200+ 1000+ 2000+
0.1293 0.0739 0.0431 0.0359
Add
Enter Quantity to Check Lead Time
Shape: Square
For use: B1729 nd B17295
Fit switch: 12 x 12 mm
Size: 12 x 12 x 5.5 mm
Round cover for B1729 & B17295
  • Item No.：B17172
  • Color
Unit price (USD)
50+ 200+ 1000+ 2000+
0.1293 0.0739 0.0431 0.0359
Add
Enter Quantity to Check Lead Time
Shape: Round
For use: B1729 nd B17295
Fit switch: 12 x 12 mm
Size: 13 x 13 x 5.7 mm
Tact switch 180gf
12V 0.05A
Unit price (USD)
1000+
0.0591
Add
Enter Quantity to Check Lead Time
Rating: 0.5A 12VDC
Contact resistance: 100mΩ Max.
Travel: 0.25±0.1m/m
Operating force: 180±30gf
Operating life: 50,000 cycles Max.
Tact switch
12V 0.05A Height:5.0mm
Unit price (USD)
1500+
0.0958
Add
Enter Quantity to Check Lead Time
Rating: 0.5A 12VDC
Contact resistance: 100mΩ Max.
Travel: 0.25±0.1m/m
Operating force: 180
Tact switch
12V 0.05A
Unit price (USD)
1000+
0.0958
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Operation force: 160gf
Tact switch
12V 0.05A
Unit price (USD)
1000+
0.0958
Add
Enter Quantity to Check Lead Time
Circuit: Push On
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Tact switch
12V 0.05A
Unit price (USD)
1000+
0.0958
Add
Enter Quantity to Check Lead Time
Circuit: Push On
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Tact switch 160gf
12V 0.05A
Unit price (USD)
500+ 1000+
0.1034 0.0862
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength; 250VAC for 1 minute
Operation force: 160±50gf
Tact switch 160gf
12V 0.05A
Unit price (USD)
20+ 100+ 500+ 1000+
0.3103 0.1773 0.1034 0.0862
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength; 250VAC for 1 minute
Operation force: 160±50gf
Tact switch (SMD) 160gf
12V 0.05A
Unit price (USD)
2800+
0.1533
Add
Enter Quantity to Check Lead Time
Circuit: 1P1T
Rating : 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Tact switch (SMD)
12V 0.05A
Unit price (USD)
4000+
0.1054
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Operation force: 160±50gf
Tact switch brown 160gf (SMD)
Can reach to IP67
Unit price (USD)
750+
0.1245
Add
Enter Quantity to Check Lead Time
Current rating: 50mA
Voltage rating: 12VDC
Travel: 0.25mm
Protective grade: IP67
Mounting type: Surface mount
Tact switch brown 160gf
Can reach to IP67
Unit price (USD)
750+
0.1303
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Operation force: 160±50gf
Tact switch brown 180gf (SMD)
Can reach to IP67
Unit price (USD)
750+
0.1245
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Operation force: 180±50gf
Sealed tact switch brown 180gf
Can reach to IP67
Unit price (USD)
75+ 200+ 400+
0.2857 0.1667 0.1389
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Operation force: 180±50gf
Sealed tact switch brown 160gf
Can reach to IP67
Unit price (USD)
39+ 100+ 200+
0.5222 0.3046 0.2538
Add
Enter Quantity to Check Lead Time
Rating: 50mA 24VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Operation force: 160±50gf
Sealed tact switch brown 160gf (SMD)
Can reach to IP67
Unit price (USD)
39+ 100+ 200+
0.5419 0.3161 0.2634
Add
Enter Quantity to Check Lead Time
Rating: 50mA 24VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Operation force: 160±50gf
