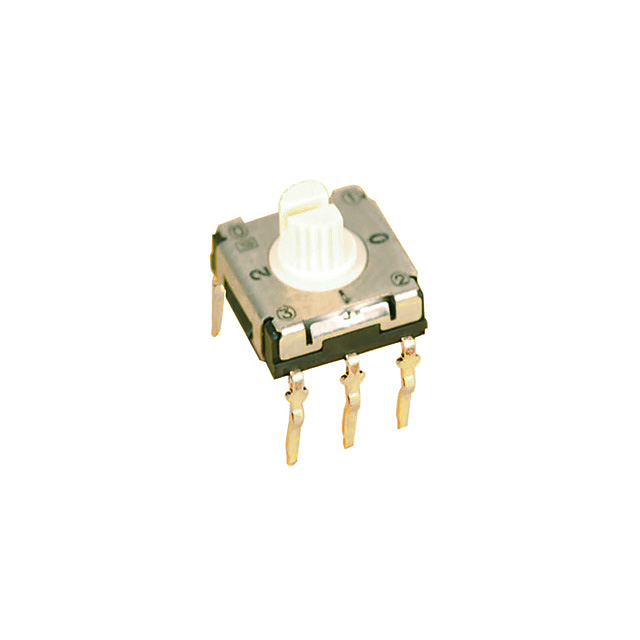

Miniature size 7x7mm rotary DIP
switch (4 positions)
5V 100mA (Min. 5V 10μA)
Price per each (USD)
Quantity Price
70+ 1.3088
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Features

·Outer dimension 7.2mm square, 3.0mm high on board
·Positions and switch code can be identified
·Pin-out compatible with most of current equivalents
·Gold plated contact area ensures reliable electric continuity for micro current
·Surface mounting type can be supplied in embossed taping for automatic packing
·Easy position setting with wide switching angle and high digit visibility
·All plastics are UL 94V-0 grade fire retardant

Specifications

·Rating: 100mA 5VDC Max. (switching load), 10pA 5VDC Min. (switching load)
·Contact resistance: 100mΩ Max. (initial)
·Insulation resistance: 100MΩ Min. at 100VDC
·Dielectric strength: 250VAC RMS. for 1 minute
·Operation force: 510 gf-cm Max.
·Operation life: 10,000 detents Min.
·Vibration: 10Hz-50Hz-10Hz for 6Hrs.
·Operating temperature: -40°C to +85°C
·Storage temperature: -40°C to +85°C
·Solderability: After flux 245±5°C for 5±1 seconds
·Resistance to soldering heat: 260±5°C for 5±1 seconds

Applications

·Address switching applications
·Data storage devices
·Computer and peripherals
·Instrumentation
