Electrical Characteristics
Overview

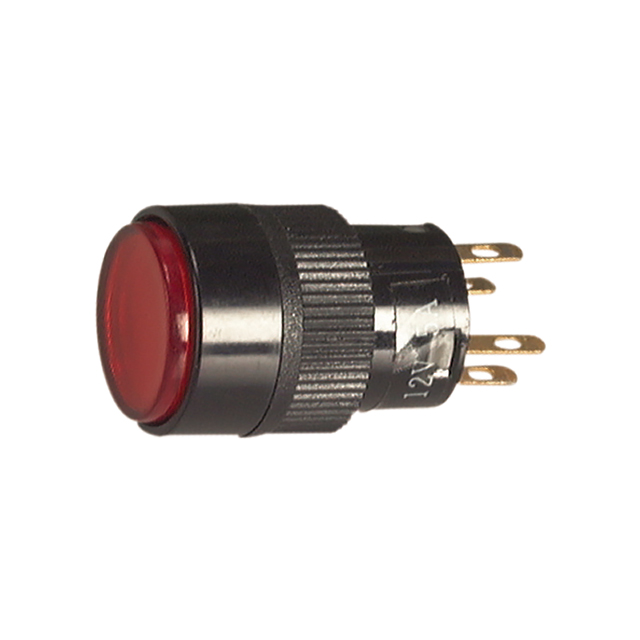

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.
Specifications
·Switch function: Off-On
·Rating: 3A 24VDC
·Contact resistance: 30mΩ Max. at 1A 5VDC
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 500VAC for 1 minute
·Operating force: 250±50g
·Life cycle: 40,000 Max.
