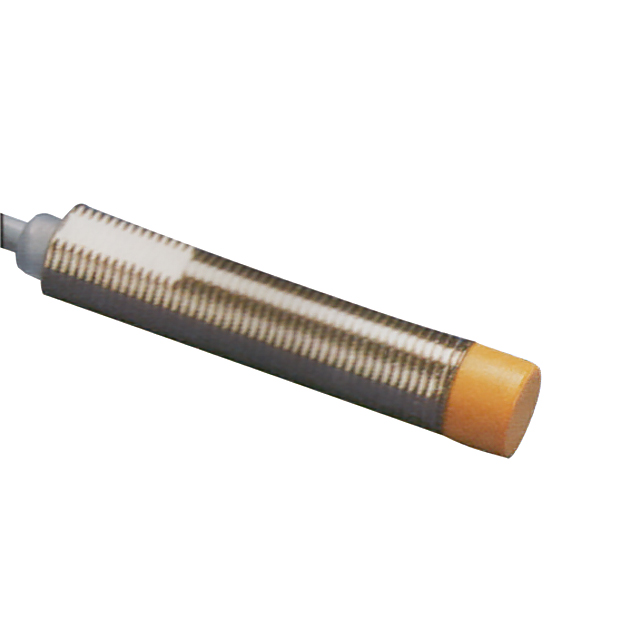

Proximity Switch – Non-Contact Detection Sensor
A proximity switch detects objects without physical contact, making it ideal for automation, robotics, machinery, and safety systems. Offered in inductive, capacitive, and magnetic types, proximity switches ensure high precision, durability, and reliable operation in industrial environments.

Specifications

·Power supply: 10-30VDC
·Current consumption: 10mA Max.
·Output current: 150mA Max.
·Operation distance: 4mm±10% Max.
·Secure sensing range: 0 to 3.2mm
·Standard sensing object: Iron steel 12x12x1mm
·Residual voltage: 1.5V Max. at 150mA sink current
·Hysteresis: 15% or less of operation distance
·Response frequency: 600Hz
·Degree of protection: IP67
·Operating temperature: -25°C to +70°C
·Humidity temperature: 95% RH Max.
·Cable length: 2M

Materials

·Detection surface: POM
·Housing: Brass nickel plated
·Wire: PVC oil resistance
