Electrical Characteristics
Overview

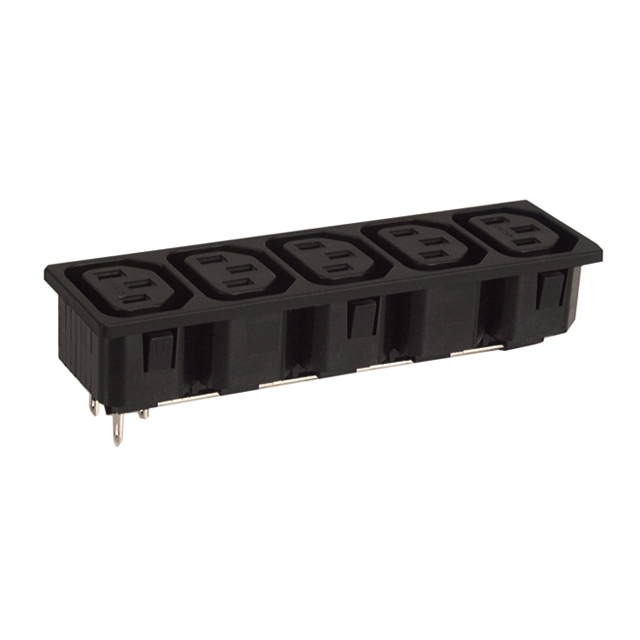

AC Socket – Reliable Power Inlet
AC sockets provide safe, stable power input to devices. Common in computers, appliances, and industrial equipment, they are available in IEC C13, C14, and custom configurations for secure connections.
Specifications
·Gender: Female
·Rating: 10A 250VAC / 15A 250VAC
·No. of positions: 5 per connection
·Body orientation: Straight
·Mounting: Snap-in
·Termination: Solder
·Terminal width: 3.0 mm
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 2000VAC for 1 minute
·Withdrawing force: 10N~50N
Materials
·Body: Thermoplastic UL94V-0 or UL94V-2
