Electrical Characteristics

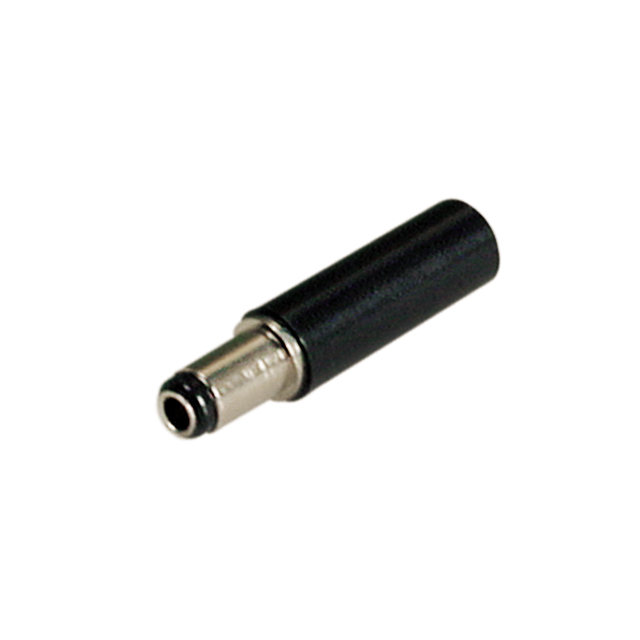

Specifications
·Gender: Male
·Current rating: 1A
·Voltage rating: 12VDC
·Inner diameter: 2.8mm
·Outer diameter: 5.5mm
·Barrel length: 9.0mm
·Orientation: Straight
·Mouting type: Cable mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
Materials
.Insulator ring: POM, black
.Outer sleeve: Brass, nickel plated
.Ground terminal: Brass, nickel plated
.Terminal: Brass, nickel plated
.Housing: ABS, black
